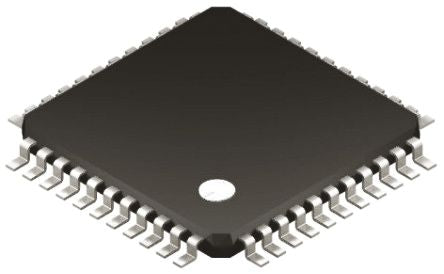

Microchip PIC18F4480-I/PT, 8bit PIC18F Microcontroller, 40MHz, 16 kB Flash, 40-Pin PDIP [PIC18F4480-I/PT]; 818-2668
by Microchip
0₫
Mã kho: 8182668
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC18F |
| Package Type | PDIP |
| Mounting Type | Through Hole |
| Pin Count | 40 |
| Device Core | PIC18F |
| Data Bus Width | 8bit |
| Program Memory Size | 16 kB |
| Maximum Frequency | 40MHz |
| RAM Size | 768 B |
| USB Channels | 1 |
| Number of PWM Units | 1 |
| ADC Channels | 11 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 2 to 5.5 V |
| Number of Timers | 4 |
| Number of I2C Channels | 1 |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Length | 53.09mm |
| ADCs | 1(11 x 10 bit) |
| Timer Resolution | 8 bit, 16 bit |
| Height | 4.95mm |
| Number of LIN Channels | 1 |
| Width | 0.58in |
| Number of USART Channels | 1 |
| Timers | 1 x 8 bit, 3 x 16 bit |
| Dimensions | 2.09 x 0.58 x 0.195in |
| Pulse Width Modulation | 1 |
| Program Memory Type | Flash |
| Number of UART Channels | 1 |
| Number of CAN Channels | 1 |
| ADC Resolution | 10bit |
| Minimum Operating Temperature | -40 °C |
| Instruction Set Architecture | RISC |
