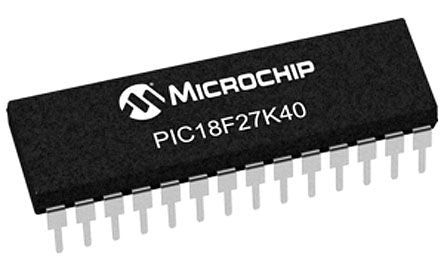

Microchip PIC18F27K40-I/SP, 8bit PIC18 Microcontroller, 64MHz, 128 kB Flash, 28-Pin SDIP [PIC18F27K40-I/SP]; 126-2151
by Microchip
0₫
Mã kho: 1262151
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC18F |
| Package Type | SDIP |
| Mounting Type | Surface Mount |
| Pin Count | 28 |
| Device Core | PIC18 |
| Data Bus Width | 8bit |
| Program Memory Size | 128 kB |
| Maximum Frequency | 64MHz |
| RAM Size | 3.728 kB |
| Number of PWM Units | 1 |
| ADC Channels | 24 |
| Typical Operating Supply Voltage | 2.3 → 5.5 V |
| Program Memory Type | Flash |
| Pulse Width Modulation | 1(2 x 10 bit) |
| Dimensions | 35.56 x 7.49 x 3.81mm |
| Timers | 1(3 x 8 bit), 1(4 x 16 bit) |
| Width | 7.49mm |
| PWM Channels | 2 |
| Height | 3.81mm |
| Timer Resolution | 8 bit, 16 bit |
| ADCs | 1(24 x 10 bit) |
| Number of Timers | 2 |
| Maximum Operating Temperature | +85 °C |
| Instruction Set Architecture | RISC |
| ADC Resolution | 10bit |
| Minimum Operating Temperature | -40 °C |
| PWM Resolution | 10bit |
| Number of ADC Units | 1 |
| Length | 35.56mm |
