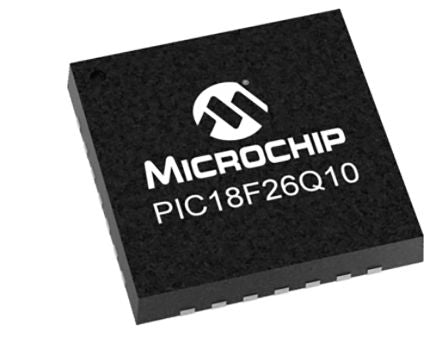

Microchip Technology, PIC18F26Q10-I/SP [PIC18F26Q10-I/SP]; 187-9402
by Microchip
0₫
Mã kho: 1879402
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC18F |
| Package Type | PDIP |
| Mounting Type | Through Hole |
| Pin Count | 28 |
| Device Core | CPU |
| Data Bus Width | 8bit |
| Program Memory Size | 64 kB |
| Maximum Frequency | 64MHz |
| RAM Size | 3.615 kB |
| Number of PWM Units | 1 |
| ADC Channels | 24 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 1.8 → 5.5 V |
| Timer Resolution | 8 bit, 16 bit |
| Height | 3.81mm |
| PWM Channels | 2 |
| Width | 7.37mm |
| ADC Resolution | 10bit |
| Number of USART Channels | 2 |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 1.4 x 0.29 x 0.15in |
| PWM Resolution | 10bit |
| Pulse Width Modulation | 1 (2 x 10 bit) |
| Instruction Set Architecture | RISC |
| Number of ADC Units | 1 |
| Program Memory Type | Flash |
| Maximum Operating Temperature | +85 °C |
| Number of UART Channels | 2 |
| Length | 35.56mm |
| ADCs | 1 (24 x 10 bit) |
| Number of Timers | 2 |
| Number of I2C Channels | 2 |
