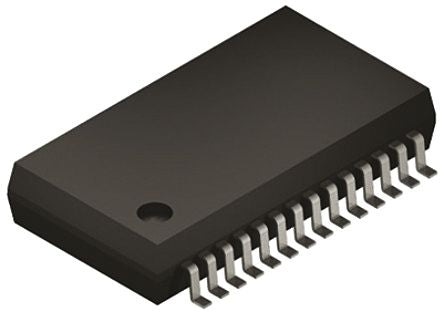

Microchip PIC18F26K22-E/SS, 8bit PIC Microcontroller, 64MHz, 64 kB Flash, 28-Pin SSOP [PIC18F26K22-E/SS]; 159-7499
by Microchip
0₫
Mã kho: 1597499
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | PIC18F |
Package Type | SSOP |
Mounting Type | Surface Mount |
Pin Count | 28 |
Device Core | PIC |
Data Bus Width | 8bit |
Program Memory Size | 64 kB |
Maximum Frequency | 64MHz |
RAM Size | 3.896 kB |
Number of PWM Units | 5 |
ADC Channels | 19 |
Number of SPI Channels | 2 |
Typical Operating Supply Voltage | 2.3 → 5.5 V |
Number of Timers | 7 |
Number of I2C Channels | 2 |
Number of UART Channels | 2 |
Dimensions | 10.5 x 5.6 x 1.85mm |
Timers | 3 x 8 bit, 4 x 16 bit |
Width | 5.6mm |
Number of LIN Channels | 2 |
Height | 1.85mm |
Timer Resolution | 8 bit, 16 bit |
Pulse Width Modulation | 5 x 10/8 bit |
Program Memory Type | Flash |
Number of USART Channels | 2 |
Number of ADC Units | 1 |
Maximum Operating Temperature | +125 °C |
Length | 10.5mm |
Instruction Set Architecture | RISC |
PWM Resolution | 8 bit, 10 bit |
Minimum Operating Temperature | -40 °C |
ADCs | 1(19 x 10 bit) |
ADC Resolution | 10bit |
