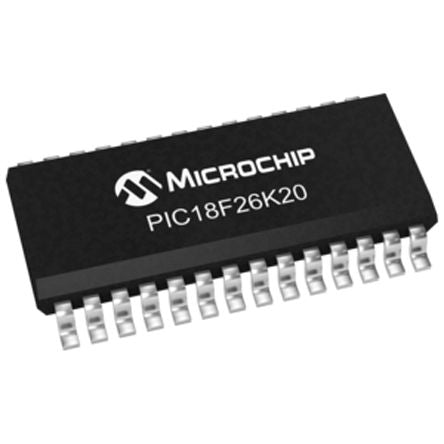

Microchip PIC18F26K20-I/SO, 8bit PIC Microcontroller, 64MHz, 1.024 kB, 64 kB Flash, 28-Pin SOIC [PIC18F26K20-I/SO]; 144-5727
by Microchip
0₫
Mã kho: 1445727
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | PIC18F |
Package Type | SOIC |
Mounting Type | Surface Mount |
Pin Count | 28 |
Device Core | PIC |
Data Bus Width | 8bit |
Program Memory Size | 1.024 kB, 64 kB |
Maximum Frequency | 64MHz |
RAM Size | 3.936 kB |
Number of PWM Units | 2 |
ADC Channels | 11 |
Number of SPI Channels | 1 |
Typical Operating Supply Voltage | 1.8 → 3.6 V |
Dimensions | 17.9 x 7.5 x 2.35mm |
Timers | 1 x 8 bit, 3 x 16 bit |
Number of USART Channels | 1 |
Width | 7.5mm |
Number of I2C Channels | 1 |
Number of Timers | 4 |
Program Memory Type | Flash |
Pulse Width Modulation | 1(CCP), 1(ECCP) |
Height | 2.35mm |
Timer Resolution | 8 bit, 16 bit |
ADC Resolution | 10bit |
Minimum Operating Temperature | -40 °C |
Instruction Set Architecture | RISC |
Number of ADC Units | 1 |
ADCs | 11 x 10 bit |
Length | 17.9mm |
Maximum Operating Temperature | +85 °C |
