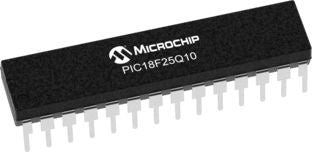

Microchip Technology PIC18F25Q10-I/SP, 8bit Microcontroller, 64MHz, 32 kB Flash, 28-Pin SPDIP [PIC18F25Q10-I/SP]; 175-7155
by Microchip
0₫
Mã kho: 1757155
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC18F25Q10 |
| Package Type | SPDIP |
| Mounting Type | Surface Mount |
| Pin Count | 28 |
| Data Bus Width | 8bit |
| Program Memory Size | 32 kB |
| Maximum Frequency | 64MHz |
| RAM Size | 2 kB |
| Number of PWM Units | 1 |
| ADC Channels | 24 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 1.8 → 5.5 V |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 1.4 x 0.29 x 0.15mm |
| PWM Resolution | 10bit |
| Pulse Width Modulation | 1 (2 x 10 bit) |
| Instruction Set Architecture | RISC |
| ADC Resolution | 10bit |
| Number of UART Channels | 1 |
| Length | 1.4mm |
| ADCs | 1 (24 x 10 bit) |
| Number of Timers | 7 |
| Width | 0.29mm |
| PWM Channels | 2 |
| Number of LIN Channels | 1 |
| Number of ADC Units | 1 |
| Program Memory Type | Flash |
| Number of I2C Channels | 1 |
| Height | 0.15mm |
| Timer Resolution | 8 bit, 16 bit |
| Maximum Operating Temperature | +85 °C |
| Timers | 1 (3 x 8 bit), 1 (4 x 16 bit) |
