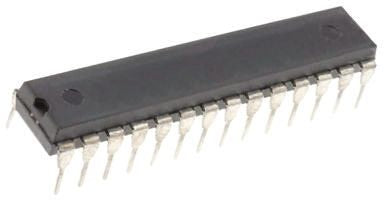

Microchip PIC18F25J11-I/SP, 8bit PIC Microcontroller, 48MHz, 32 kB Flash, 28-Pin SPDIP [PIC18F25J11-I/SP]; 666-9942
by Microchip
0₫
Mã kho: 6669942
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | PIC18F |
Package Type | SPDIP |
Mounting Type | Through Hole |
Pin Count | 28 |
Device Core | PIC |
Data Bus Width | 8bit |
Program Memory Size | 32 kB |
Maximum Frequency | 48MHz |
RAM Size | 3.776 kB |
Number of PWM Units | 2 |
ADC Channels | 10 |
Number of SPI Channels | 2 |
Typical Operating Supply Voltage | 2.15 to 3.6 V |
Dimensions | 1.4 x 0.295 x 0.15in |
Program Memory Type | Flash |
Number of Timers | 5 |
Number of I2C Channels | 2 |
ADC Resolution | 10bit |
Minimum Operating Temperature | -40 °C |
PWM Resolution | 16bit |
Timer Resolution | 8 bit, 16 bit |
Height | 3.81mm |
Number of USART Channels | 2 |
Timers | 2 x 8 bit, 3 x 16 bit |
Length | 35.56mm |
ADCs | 10 x 10 bit |
Number of ADC Units | 1 |
Instruction Set Architecture | RISC |
Maximum Operating Temperature | +85 °C |
Width | 0.295in |
Pulse Width Modulation | 2(16 bit) (ECCP) |
