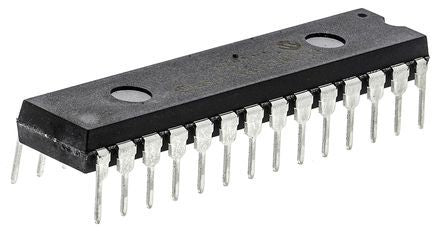

Microchip PIC18F2525-I/SP, 8bit PIC Microcontroller, 40MHz, 1.024 kB, 48 kB Flash, 28-Pin SPDIP [PIC18F2525-I/SP]; 623-0689
by Microchip
0₫
Mã kho: 6230689
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC18F |
| Package Type | SPDIP |
| Mounting Type | Through Hole |
| Pin Count | 28 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 1.024 kB, 48 kB |
| Maximum Frequency | 40MHz |
| RAM Size | 3.986 kB |
| Number of PWM Units | 2 |
| ADC Channels | 10 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 4.2 to 5.5 V |
| Length | 35.56mm |
| Number of ADC Units | 1 |
| Width | 0.295in |
| Instruction Set Architecture | RISC |
| Pulse Width Modulation | 2(CCP) |
| ADC Resolution | 10bit |
| Number of I2C Channels | 1 |
| Maximum Operating Temperature | +85 °C |
| ADCs | 10 x 10 bit |
| Number of USART Channels | 1 |
| Program Memory Type | Flash |
| Timers | 1 x 8 bit, 3 x 16 bit |
| Number of Timers | 4 |
| Minimum Operating Temperature | -40 °C |
| Height | 3.81mm |
| Timer Resolution | 8 bit, 16 bit |
| Dimensions | 1.4 x 0.295 x 0.15in |
