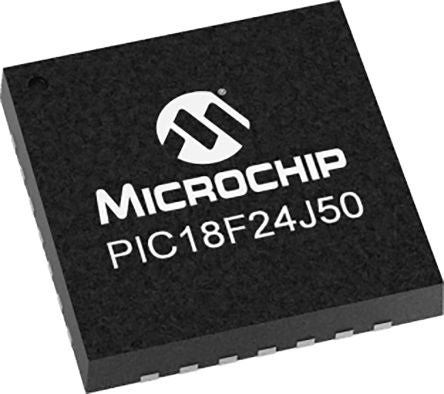

Microchip Technology PIC18F24J50-I/ML, 8bit PIC Microcontroller, 48MHz, 16 kB Flash, 20-Pin QFN [PIC18F24J50-I/ML]; 177-2171
by Microchip
0₫
Mã kho: 1772171
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC18F |
| Package Type | QFN |
| Mounting Type | Surface Mount |
| Pin Count | 20 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 16 kB |
| Maximum Frequency | 48MHz |
| RAM Size | 3.776 kB |
| USB Channels | 1 |
| Number of PWM Units | 1 |
| ADC Channels | 10 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 3.6 (Maximum) V |
| Number of Timers | 2 |
| Program Memory Type | Flash |
| Pulse Width Modulation | 1 (2 x 16 bit) |
| Dimensions | 4 x 4 x 0.95mm |
| Timers | 1 (2 x 8 bit), 1 (3 x 16 bit) |
| Number of USART Channels | 2 |
| Width | 4mm |
| Number of I2C Channels | 2 |
| Number of UART Channels | 2 |
| ADCs | 1 (10 x 10 bit) |
| Length | 4mm |
| Maximum Operating Temperature | +85 °C |
| Number of ADC Units | 1 |
| Height | 0.95mm |
| Timer Resolution | 8 bit, 16 bit |
| PWM Channels | 2 |
| ADC Resolution | 10bit |
| Minimum Operating Temperature | -40 °C |
| PWM Resolution | 16bit |
