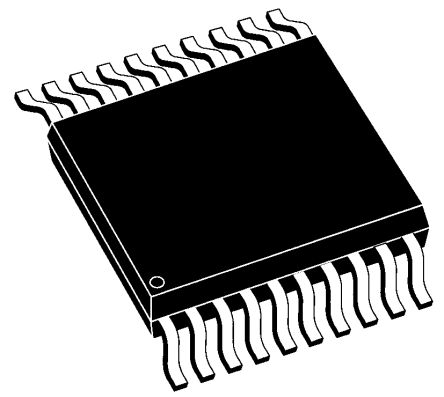

![Microchip PIC18F13K50-I/SS 1654698](http://nguyenxuong.com/cdn/shop/products/R0445585-01_83732f57-89bc-4d7f-9db6-ecab01c50ead_444x397.gif?v=1594248446)
Microchip PIC18F13K50-I/SS, 8bit PIC Microcontroller, 48MHz, 8 kB, 256 B Flash, 20-Pin SSOP [PIC18F13K50-I/SS]; 165-4698
by Microchip
0₫
Mã kho: 1654698
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | PIC18F |
Package Type | SSOP |
Mounting Type | Surface Mount |
Pin Count | 20 |
Device Core | PIC |
Data Bus Width | 8bit |
Program Memory Size | 8 kB, 256 B |
Maximum Frequency | 48MHz |
RAM Size | 512 B |
USB Channels | 1 x Device |
Number of PWM Units | 1 |
ADC Channels | 11 |
Number of SPI Channels | 1 |
Typical Operating Supply Voltage | 1.8 → 5.5 V |
ADC Resolution | 10bit |
Minimum Operating Temperature | -40 °C |
Instruction Set Architecture | RISC |
Number of I2C Channels | 1 |
ADCs | 11 x 10 bit |
Length | 7.5mm |
Maximum Operating Temperature | +85 °C |
Number of ADC Units | 1 |
Number of Timers | 4 |
Program Memory Type | Flash |
Pulse Width Modulation | 1(ECCP) |
Dimensions | 7.5 x 5.6 x 1.85mm |
Timers | 1 x 8 bit, 3 x 16 bit |
Number of USART Channels | 1 |
Width | 5.6mm |
Timer Resolution | 8 bit, 16 bit |
Height | 1.85mm |
