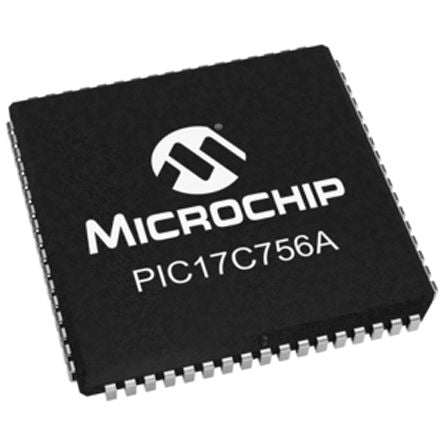

Microchip PIC17C756A-33I/L, 8bit PIC Microcontroller, 33MHz, 16K x 16 words EPROM, 68-Pin PLCC [PIC17C756A-33I/L]; 328-4100
by Microchip
0₫
Mã kho: 3284100
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC17 |
| Package Type | PLCC |
| Mounting Type | Surface Mount |
| Pin Count | 68 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 16K x 16 words |
| Maximum Frequency | 33MHz |
| RAM Size | 902 B |
| Number of PWM Units | 3 |
| ADC Channels | 12 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 3 → 5.5 V |
| PWM Resolution | 10bit |
| Minimum Operating Temperature | -40 °C |
| Timer Resolution | 8 bit, 16 bit |
| Height | 3.68mm |
| Number of USART Channels | 2 |
| Timers | 2 x 16 bit, 2 x 8 bit |
| Dimensions | 24.33 x 24.33 x 3.68mm |
| Program Memory Type | EPROM |
| Number of Timers | 4 |
| Pulse Width Modulation | 3(10 bit) |
| Number of I2C Channels | 1 |
| Instruction Set Architecture | RISC |
| ADC Resolution | 10bit |
| Maximum Operating Temperature | +85 °C |
| Length | 24.33mm |
| ADCs | 12 x 10 bit |
| Width | 24.33mm |
| Number of ADC Units | 1 |
