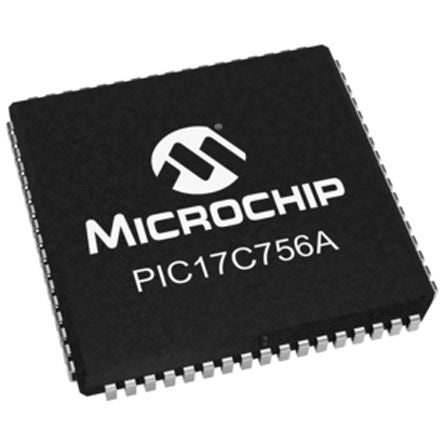

Microchip PIC17C756A-33I/L, 8bit PIC Microcontroller, 33MHz, 16K x 16 words EPROM, 68-Pin PLCC [PIC17C756A-33I/L]; 144-5741
by Microchip
0₫
Mã kho: 1445741
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | PIC17 |
Package Type | PLCC |
Mounting Type | Surface Mount |
Pin Count | 68 |
Device Core | PIC |
Data Bus Width | 8bit |
Program Memory Size | 16K x 16 words |
Maximum Frequency | 33MHz |
RAM Size | 902 B |
Number of PWM Units | 3 |
ADC Channels | 12 |
Number of SPI Channels | 1 |
Typical Operating Supply Voltage | 3 → 5.5 V |
Program Memory Type | EPROM |
Number of Timers | 4 |
Pulse Width Modulation | 3(10 bit) |
Dimensions | 24.33 x 24.33 x 3.68mm |
Timers | 2 x 16 bit, 2 x 8 bit |
Number of USART Channels | 2 |
Width | 24.33mm |
Timer Resolution | 8 bit, 16 bit |
Height | 3.68mm |
Number of I2C Channels | 1 |
PWM Resolution | 10bit |
Maximum Operating Temperature | +85 °C |
ADCs | 12 x 10 bit |
Minimum Operating Temperature | -40 °C |
ADC Resolution | 10bit |
Number of ADC Units | 1 |
Instruction Set Architecture | RISC |
Length | 24.33mm |
