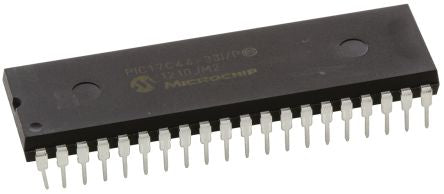

Microchip PIC17C44-33I/P, 8bit PIC Microcontroller, 33MHz, 8K x 16 words EPROM, 40-Pin PDIP [PIC17C44-33I/P]; 328-3983
by Microchip
0₫
Mã kho: 3283983
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC17 |
| Package Type | PDIP |
| Mounting Type | Through Hole |
| Pin Count | 40 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 8K x 16 words |
| Maximum Frequency | 33MHz |
| RAM Size | 454 B |
| Number of PWM Units | 2 |
| Typical Operating Supply Voltage | 4.5 to 5.5 V |
| Program Memory Type | EPROM |
| Number of Timers | 4 |
| Dimensions | 52.197 x 13.97 x 4.064mm |
| Timers | 2 x 16 bit, 2 x 8 bit |
| Number of USART Channels | 1 |
| Height | 4.064mm |
| Timer Resolution | 8 bit, 16 bit |
| PWM Resolution | 10bit |
| Minimum Operating Temperature | -40 °C |
| Pulse Width Modulation | 2(10 bit) |
| Width | 13.97mm |
| Length | 52.2mm |
| Maximum Operating Temperature | +85 °C |
| Instruction Set Architecture | RISC |
