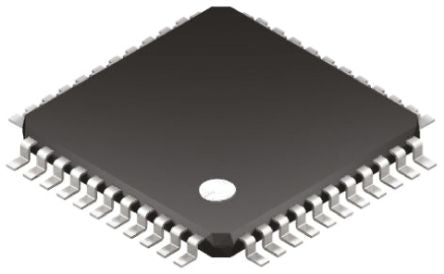

Microchip PIC16LF1939-I/PT, 8bit PIC Microcontroller, 32MHz, 28 kB Flash, 44-Pin TQFP [PIC16LF1939-I/PT]; 724-0549
by Microchip
0₫
Mã kho: 7240549
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC16F |
| Package Type | TQFP |
| Mounting Type | Surface Mount |
| Pin Count | 44 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 28 kB |
| Maximum Frequency | 32MHz |
| RAM Size | 1.024 kB, 256 B |
| Number of PWM Units | 5 |
| ADC Channels | 14 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 1.8 → 3.6 V |
| Timers | 1 x 16 bit, 4 x 8 bit |
| PWM Channels | 5 |
| Width | 10mm |
| Pulse Width Modulation | 2 x 10 bit |
| Instruction Set Architecture | RISC |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Length | 10mm |
| ADCs | 14 x 10 bit |
| Dimensions | 10 x 10 x 1.05mm |
| Program Memory Type | Flash |
| Number of Timers | 5 |
| Number of I2C Channels | 1 |
| ADC Resolution | 10bit |
| Minimum Operating Temperature | -40 °C |
| PWM Resolution | 10bit |
| Timer Resolution | 8 bit, 16 bit |
| Height | 1.05mm |
| Number of USART Channels | 1 |
