![Microchip PIC16LF18855-I/SP 1445889](http://nguyenxuong.com/cdn/shop/products/R9053189-01_444x273.jpg?v=1594200276)

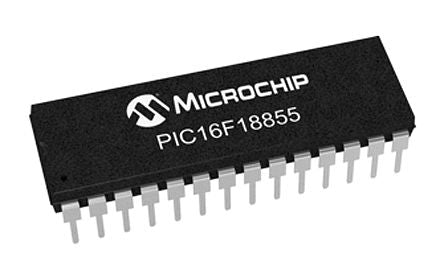

Microchip PIC16LF18855-I/SP, 8bit PIC16F Microcontroller, 32MHz, 14 kB Flash, 28-Pin SPDIP [PIC16LF18855-I/SP]; 144-5889
by Microchip
0₫
Mã kho: 1445889
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | PIC16LF |
Package Type | SPDIP |
Mounting Type | Surface Mount |
Pin Count | 28 |
Device Core | PIC16F |
Data Bus Width | 8bit |
Program Memory Size | 14 kB |
Maximum Frequency | 32MHz |
RAM Size | 1.024 kB |
Number of PWM Units | 2 |
ADC Channels | 24 |
Typical Operating Supply Voltage | 1.8 → 3.6 V |
Number of Timers | 7 |
ADCs | 1 (24 x 10 bit) |
Program Memory Type | Flash |
Number of ADC Units | 1 |
Length | 35.56mm |
Maximum Operating Temperature | +85 °C |
Timers | 3 x 8 bit, 4 x 16 bit |
PWM Resolution | 10bit |
Pulse Width Modulation | 2 x 10 bit |
Minimum Operating Temperature | -40 °C |
ADC Resolution | 10bit |
Timer Resolution | 8 bit, 16 bit |
Height | 5.08mm |
Width | 7.37mm |
Dimensions | 35.56 x 7.37 x 5.08mm |
Instruction Set Architecture | RISC |
