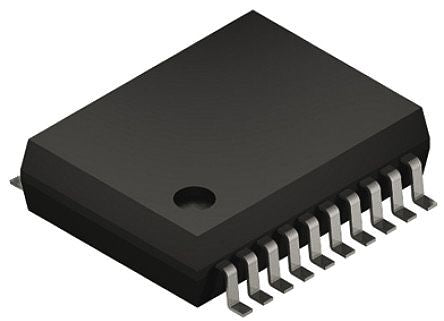

Microchip PIC16LF1559-I/SS, 8bit PIC16LF Microcontroller, 32MHz, 8192 words Flash, 20-Pin SSOP [PIC16LF1559-I/SS]; 861-0618
by Microchip
0₫
Mã kho: 8610618
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC16F |
| Package Type | SSOP |
| Mounting Type | Surface Mount |
| Pin Count | 20 |
| Device Core | PIC16LF |
| Data Bus Width | 8bit |
| Program Memory Size | 8192 words |
| Maximum Frequency | 32MHz |
| RAM Size | 512 B |
| ADC Channels | 17 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 1.8 → 3.6 V |
| Length | 7.5mm |
| ADCs | 1 (17 x 10 bit) |
| Number of Timers | 3 |
| Timer Resolution | 8 bit, 16 bit |
| Height | 1.85mm |
| Width | 5.6mm |
| Number of USART Channels | 1 |
| Timers | 1 x 16 bit, 2 x 8 bit |
| Dimensions | 7.5 x 5.6 x 1.85mm |
| Program Memory Type | Flash |
| Number of ADC Units | 1 |
| Number of I2C Channels | 1 |
| Maximum Operating Temperature | +85 °C |
| ADC Resolution | 10bit |
| Minimum Operating Temperature | -40 °C |
| Instruction Set Architecture | RISC |
