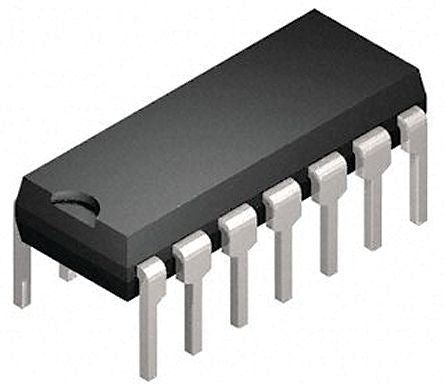

Microchip PIC16LF1554-I/P, 8bit PIC16LF Microcontroller, 32MHz, 4096 words Flash, 14-Pin PDIP [PIC16LF1554-I/P]; 159-7515
by Microchip
0₫
Mã kho: 1597515
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC16F |
| Package Type | PDIP |
| Mounting Type | Through Hole |
| Pin Count | 14 |
| Device Core | PIC16LF |
| Data Bus Width | 8bit |
| Program Memory Size | 4096 words |
| Maximum Frequency | 32MHz |
| RAM Size | 256 B |
| ADC Channels | 11 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 1.8 → 3.6 V |
| Number of ADC Units | 1 |
| Number of I2C Channels | 1 |
| Maximum Operating Temperature | +85 °C |
| Length | 19.69mm |
| ADCs | 1 (11 x 10 bit) |
| Number of Timers | 3 |
| Timer Resolution | 8 bit, 16 bit |
| Height | 4.95mm |
| Width | 0.28in |
| Number of USART Channels | 1 |
| Timers | 1 x 16 bit, 2 x 8 bit |
| Dimensions | 0.775 x 0.28 x 0.195in |
| Minimum Operating Temperature | -40 °C |
| Program Memory Type | Flash |
| ADC Resolution | 10bit |
| Instruction Set Architecture | RISC |
