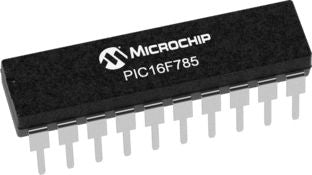

Microchip PIC16HV785-I/P, 8bit PIC Microcontroller, 20MHz, 2048 x 14 words, 256 B Flash, 20-Pin PDIP [PIC16HV785-I/P]; 400-661
by Microchip
0₫
Mã kho: 400661
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC16HV |
| Package Type | PDIP |
| Mounting Type | Through Hole |
| Pin Count | 20 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 256 B, 2048 x 14 words |
| Maximum Frequency | 20MHz |
| RAM Size | 128 B |
| Number of PWM Units | 1 |
| ADC Channels | 14 |
| Typical Operating Supply Voltage | 4.2 to 5.5 V |
| Program Memory Type | Flash |
| Dimensions | 1.06 x 0.28 x 0.195in |
| Number of Timers | 3 |
| Timers | 1 x 16 bit, 2 x 8 bit |
| Width | 0.28in |
| ADCs | 14 x 10 bit |
| Length | 26.92mm |
| Pulse Width Modulation | 1(10 bit) (CCP) |
| Maximum Operating Temperature | +85 °C |
| Timer Resolution | 8 bit, 16 bit |
| Number of ADC Units | 1 |
| Height | 4.95mm |
| ADC Resolution | 10bit |
| Instruction Set Architecture | RISC |
| Minimum Operating Temperature | -40 °C |
| PWM Resolution | 10bit |
