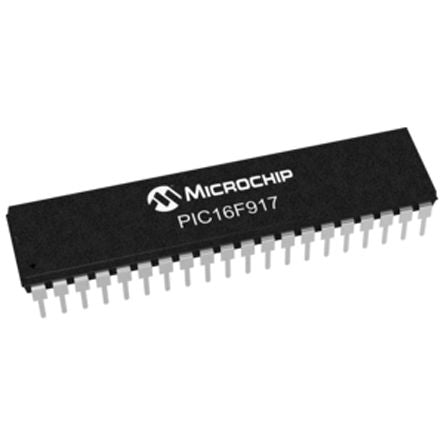

Microchip PIC16F917-I/P, 8bit PIC Microcontroller, 20MHz, 14 kB, 256 B Flash, 40-Pin PDIP [PIC16F917-I/P]; 149-590
by Microchip
0₫
Mã kho: 149590
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC16F |
| Package Type | PDIP |
| Mounting Type | Through Hole |
| Pin Count | 40 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 14 kB, 256 B |
| Maximum Frequency | 20MHz |
| RAM Size | 352 B |
| Number of PWM Units | 2 |
| ADC Channels | 8 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 4.5 → 5.5 V |
| Length | 53.21mm |
| Maximum Operating Temperature | +85 °C |
| ADCs | 8 x 10 bit |
| Width | 0.58in |
| Number of Timers | 3 |
| Number of I2C Channels | 1 |
| ADC Resolution | 10bit |
| Instruction Set Architecture | RISC |
| Number of ADC Units | 1 |
| Timer Resolution | 8 bit, 16 bit |
| Height | 4.95mm |
| PWM Resolution | 10bit |
| Minimum Operating Temperature | -40 °C |
| Program Memory Type | Flash |
| Dimensions | 2.095 x 0.58 x 0.195in |
| Timers | 1 x 16 bit, 2 x 8 bit |
| Number of USART Channels | 1 |
| Pulse Width Modulation | 2(10 bit) (CCP) |
