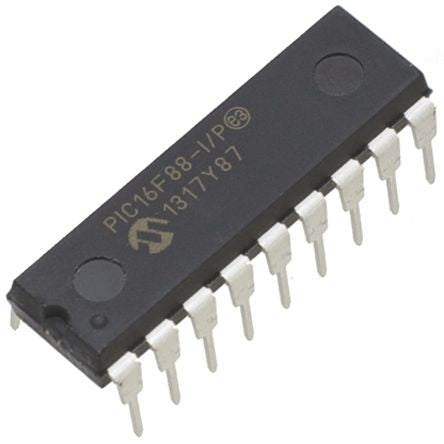

Microchip PIC16F88-I/P, 8bit PIC Microcontroller, 20MHz, 7.168 kB, 256 B Flash, 18-Pin PDIP [PIC16F88-I/P]; 623-0487
by Microchip
0₫
Mã kho: 6230487
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC16F |
| Package Type | PDIP |
| Mounting Type | Through Hole |
| Pin Count | 18 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 7.168 kB, 256 B |
| Maximum Frequency | 20MHz |
| RAM Size | 368 B |
| Number of PWM Units | 1 |
| ADC Channels | 7 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 4 → 5.5 V |
| ADCs | 7 x 10 bit |
| Width | 6.6mm |
| Number of USART Channels | 1 |
| Timers | 1 x 16 bit, 2 x 8 bit |
| Minimum Operating Temperature | -40 °C |
| PWM Resolution | 10bit |
| Dimensions | 22.99 x 6.6 x 3.68mm |
| Program Memory Type | Flash |
| Number of Timers | 3 |
| Number of I2C Channels | 1 |
| ADC Resolution | 10bit |
| Timer Resolution | 8 bit, 16 bit |
| Height | 3.68mm |
| Instruction Set Architecture | RISC |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Length | 22.99mm |
| Pulse Width Modulation | 1(10 bit) (CCP) |
