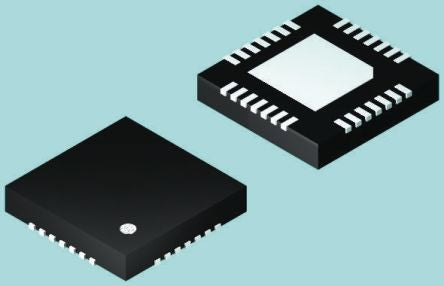

Microchip PIC16F88-I/ML, 8bit PIC Microcontroller, 20MHz, 7.168 kB, 256 B Flash, 28-Pin QFN [PIC16F88-I/ML]; 666-8700
by Microchip
0₫
Mã kho: 6668700
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | PIC16F |
Package Type | QFN |
Mounting Type | Surface Mount |
Pin Count | 28 |
Device Core | PIC |
Data Bus Width | 8bit |
Program Memory Size | 7.168 kB, 256 B |
Maximum Frequency | 20MHz |
RAM Size | 368 B |
Number of PWM Units | 1 |
ADC Channels | 7 |
Number of SPI Channels | 1 |
Typical Operating Supply Voltage | 4 → 5.5 V |
Program Memory Type | Flash |
Dimensions | 6 x 6 x 0.95mm |
Timers | 1 x 16 bit, 2 x 8 bit |
Number of USART Channels | 1 |
Height | 0.95mm |
Timer Resolution | 8 bit, 16 bit |
PWM Resolution | 10bit |
Minimum Operating Temperature | -40 °C |
Number of I2C Channels | 1 |
Number of Timers | 3 |
Length | 6mm |
ADCs | 7 x 10 bit |
Number of ADC Units | 1 |
ADC Resolution | 10bit |
Instruction Set Architecture | RISC |
Maximum Operating Temperature | +85 °C |
Pulse Width Modulation | 1(10 bit) (CCP) |
Width | 6mm |
