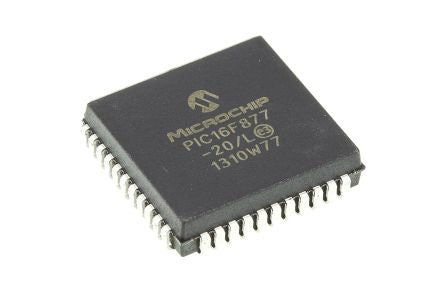

Microchip PIC16F877-20/L, 8bit PIC Microcontroller, 20MHz, 256 x 8 words, 8K x 14 words Flash, 44-Pin PLCC [PIC16F877-20/L]; 165-4807
by Microchip
0₫
Mã kho: 1654807
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | PIC16F |
Package Type | PLCC |
Mounting Type | Surface Mount |
Pin Count | 44 |
Device Core | PIC |
Data Bus Width | 8bit |
Program Memory Size | 8K x 14 words, 256 x 8 words |
Maximum Frequency | 20MHz |
RAM Size | 368 B |
Number of PWM Units | 2 |
ADC Channels | 8 |
Number of SPI Channels | 1 |
Typical Operating Supply Voltage | 4 → 5.5 V |
Number of Timers | 3 |
Timer Resolution | 8 bit, 16 bit |
Program Memory Type | Flash |
Pulse Width Modulation | 2(10 bit) (CCP) |
Dimensions | 16.66 x 16.66 x 3.68mm |
Timers | 1 x 16 bit, 2 x 8 bit |
Number of USART Channels | 1 |
Width | 16.66mm |
Number of I2C Channels | 1 |
Height | 3.68mm |
Length | 16.66mm |
ADCs | 8 x 10 bit |
ADC Resolution | 10bit |
Minimum Operating Temperature | 0 °C |
PWM Resolution | 10bit |
Instruction Set Architecture | RISC |
Number of ADC Units | 1 |
Maximum Operating Temperature | +70 °C |
