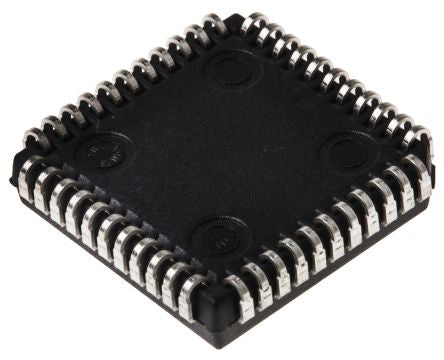

Microchip PIC16F877-04/L, 8bit PIC Microcontroller, 4MHz, 256 x 8 words, 8K x 14 words Flash, 44-Pin PLCC [PIC16F877-04/L]; 379-3137
by Microchip
0₫
Mã kho: 3793137
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC16F |
| Package Type | PLCC |
| Mounting Type | Surface Mount |
| Pin Count | 44 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 8K x 14 words, 256 x 8 words |
| Maximum Frequency | 4MHz |
| RAM Size | 368 B |
| Number of PWM Units | 2 |
| ADC Channels | 8 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 4 → 5.5 V |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| Number of ADC Units | 1 |
| Pulse Width Modulation | 2(10 bit) (CCP) |
| ADC Resolution | 10bit |
| Maximum Operating Temperature | +70 °C |
| Number of I2C Channels | 1 |
| Program Memory Type | Flash |
| Length | 16.66mm |
| ADCs | 8 x 10 bit |
| Width | 16.66mm |
| PWM Resolution | 10bit |
| Dimensions | 16.66 x 16.66 x 3.68mm |
| Timers | 1 x 16 bit, 2 x 8 bit |
| Timer Resolution | 8 bit, 16 bit |
| Height | 3.68mm |
| Number of USART Channels | 1 |
| Minimum Operating Temperature | 0 °C |
