![Microchip PIC16F876-20I/SP 1654116](http://nguyenxuong.com/cdn/shop/products/R8938196-01_ee005aec-1027-4604-bb01-f6c1a457bea7_444x274.jpg?v=1594043797)

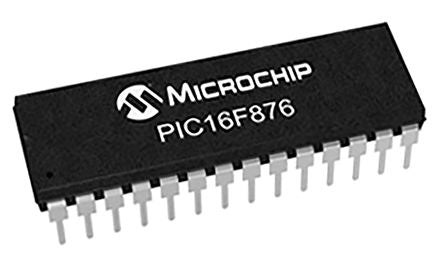

Microchip PIC16F876-20I/SP, 8bit PIC16F Microcontroller, 20MHz, 14 kB Flash, 28-Pin SPDIP [PIC16F876-20I/SP]; 165-4116
by Microchip
0₫
Mã kho: 1654116
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | PIC16F |
Package Type | SPDIP |
Mounting Type | Surface Mount |
Pin Count | 28 |
Device Core | PIC16F |
Data Bus Width | 8bit |
Program Memory Size | 14 kB |
Maximum Frequency | 20MHz |
RAM Size | 368 B |
Number of PWM Units | 2 |
ADC Channels | 5 |
Number of SPI Channels | 1 |
Typical Operating Supply Voltage | 2 → 5.5 V |
Program Memory Type | Flash |
Number of UART Channels | 1 |
Number of Timers | 3 |
Number of I2C Channels | 1 |
Maximum Operating Temperature | +85 °C |
Length | 35.18mm |
Pulse Width Modulation | 2 |
Dimensions | 35.18 x 7.49 x 3.43mm |
Timers | 1 x 16 bit, 2 x 8 bit |
Number of USART Channels | 1 |
Width | 7.49mm |
Height | 3.43mm |
Timer Resolution | 8 bit, 16 bit |
Minimum Operating Temperature | -40 °C |
ADC Resolution | 10bit |
Number of ADC Units | 1 |
ADCs | 1(5 x 10 bit) |
Instruction Set Architecture | RISC |
