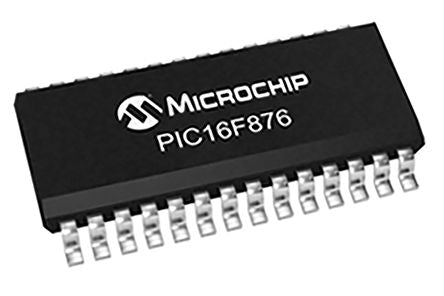

Microchip PIC16F876-04I/SO, 8bit PIC16F Microcontroller, 4MHz, 14 kB Flash, 28-Pin PLCC [PIC16F876-04I/SO]; 165-4146
by Microchip
0₫
Mã kho: 1654146
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC16F |
| Package Type | PLCC |
| Mounting Type | Surface Mount |
| Pin Count | 28 |
| Device Core | PIC16F |
| Data Bus Width | 8bit |
| Program Memory Size | 14 kB |
| Maximum Frequency | 4MHz |
| RAM Size | 368 B |
| Number of PWM Units | 2 |
| ADC Channels | 5 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 2 → 5.5 V |
| Number of I2C Channels | 1 |
| Number of Timers | 3 |
| Height | 2.39mm |
| Number of UART Channels | 1 |
| Program Memory Type | Flash |
| Pulse Width Modulation | 2 |
| Dimensions | 18.08 x 7.59 x 2.39mm |
| Timers | 1 x 16 bit, 2 x 8 bit |
| Number of USART Channels | 1 |
| Width | 7.59mm |
| ADC Resolution | 10bit |
| Minimum Operating Temperature | -40 °C |
| Instruction Set Architecture | RISC |
| ADCs | 1(5 x 10 bit) |
| Length | 18.08mm |
| Maximum Operating Temperature | +85 °C |
| Number of ADC Units | 1 |
| Timer Resolution | 8 bit, 16 bit |
