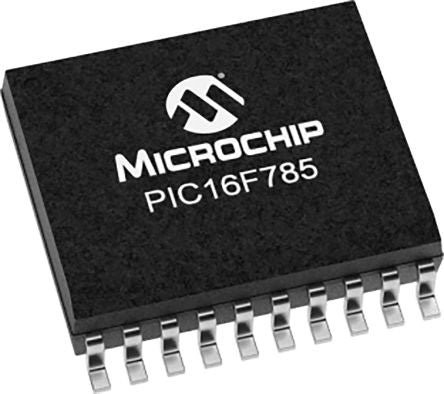

Microchip Technology PIC16F785-I/SS, 8bit PIC Microcontroller, 20MHz, 3.5 kB Flash, 20-Pin SSOP [PIC16F785-I/SS]; 177-2130
by Microchip
0₫
Mã kho: 1772130
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC16F |
| Package Type | SSOP |
| Mounting Type | Surface Mount |
| Pin Count | 20 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 3.5 kB |
| Maximum Frequency | 20MHz |
| RAM Size | 128 B |
| Number of PWM Units | 1 |
| ADC Channels | 14 |
| Typical Operating Supply Voltage | 5.5 (Maximum) V |
| ADCs | 1 (14 x 10 bit) |
| Number of Timers | 2 |
| Timer Resolution | 8 bit, 16 bit |
| Height | 1.85mm |
| PWM Channels | 1 |
| Width | 5.6mm |
| ADC Resolution | 10bit |
| Timers | 1 (1 x 16 bit), 1 (2 x 8 bit) |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 7.5 x 5.6 x 1.85mm |
| PWM Resolution | 10bit |
| Pulse Width Modulation | 1 (1 x 10 bit) |
| Instruction Set Architecture | RISC |
| Number of ADC Units | 1 |
| Program Memory Type | Flash |
| Maximum Operating Temperature | +85 °C |
| Length | 7.5mm |
