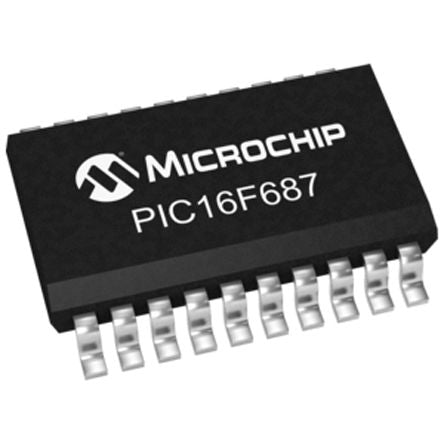

Microchip PIC16F687-I/SO, 8bit PIC Microcontroller, 20MHz, 2048 words Flash, 20-Pin SOIC [PIC16F687-I/SO]; 400-564
by Microchip
0₫
Mã kho: 400564
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | PIC16F |
Package Type | SOIC |
Mounting Type | Surface Mount |
Pin Count | 20 |
Device Core | PIC |
Data Bus Width | 8bit |
Program Memory Size | 2048 words |
Maximum Frequency | 20MHz |
RAM Size | 128 B |
ADC Channels | 12 |
Number of SPI Channels | 1 |
Typical Operating Supply Voltage | 2 → 5.5 V |
Number of I2C Channels | 1 |
Number of Timers | 2 |
Program Memory Type | Flash |
Dimensions | 12.8 x 7.5 x 2.35mm |
Timers | 1 x 16 bit, 1 x 8 bit |
Number of USART Channels | 1 |
Height | 2.35mm |
Minimum Operating Temperature | -40 °C |
Timer Resolution | 8 bit, 16 bit |
Width | 7.5mm |
ADCs | 1 (12 x 10 bit) |
Length | 12.8mm |
Maximum Operating Temperature | +85 °C |
Number of ADC Units | 1 |
ADC Resolution | 10bit |
Instruction Set Architecture | RISC |
