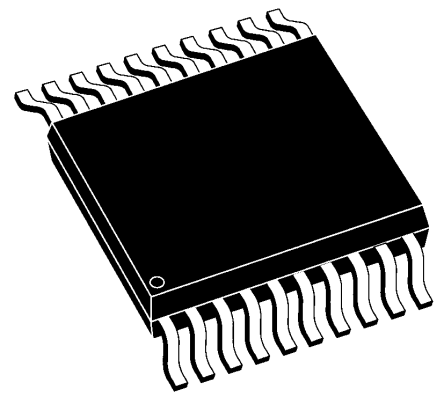

![Microchip PIC16F685-I/SS 400560](http://nguyenxuong.com/cdn/shop/products/R0445585-01_e13c6fb7-531f-4c6e-b667-0b0805b85e1e_444x397.gif?v=1594445159)
Microchip PIC16F685-I/SS, 8bit PIC Microcontroller, 20MHz, 4096 words Flash, 20-Pin SSOP [PIC16F685-I/SS]; 400-560
by Microchip
0₫
Mã kho: 400560
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | PIC16F |
Package Type | SSOP |
Mounting Type | Surface Mount |
Pin Count | 20 |
Device Core | PIC |
Data Bus Width | 8bit |
Program Memory Size | 4096 words |
Maximum Frequency | 20MHz |
RAM Size | 256 B |
Number of PWM Units | 1 |
ADC Channels | 12 |
Typical Operating Supply Voltage | 2 → 5.5 V |
ADC Resolution | 10bit |
Instruction Set Architecture | RISC |
Width | 5.6mm |
ADCs | 1 (12 x 10 bit) |
Length | 7.5mm |
Maximum Operating Temperature | +85 °C |
Number of ADC Units | 1 |
Minimum Operating Temperature | -40 °C |
Timer Resolution | 8 bit, 16 bit |
Height | 1.85mm |
Number of Timers | 3 |
Timers | 1 x 16 bit, 2 x 8 bit |
Dimensions | 7.5 x 5.6 x 1.85mm |
Program Memory Type | Flash |
Pulse Width Modulation | 1(ECCP) |
