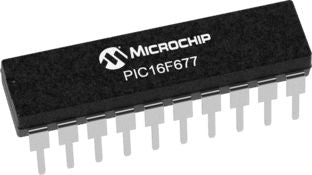

Microchip PIC16F677-I/P, 8bit PIC Microcontroller, 20MHz, 2048 x 14 words, 256 B Flash, 20-Pin PDIP [PIC16F677-I/P]; 400-267
by Microchip
0₫
Mã kho: 400267
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC16F |
| Package Type | PDIP |
| Mounting Type | Through Hole |
| Pin Count | 20 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 256 B, 2048 x 14 words |
| Maximum Frequency | 20MHz |
| RAM Size | 128 B |
| ADC Channels | 12 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 2 to 5.5 V |
| ADC Resolution | 10bit |
| Number of I2C Channels | 1 |
| Number of Timers | 2 |
| Width | 0.28in |
| ADCs | 12 x 10 bit |
| Length | 26.92mm |
| Maximum Operating Temperature | +85 °C |
| Number of ADC Units | 1 |
| Instruction Set Architecture | RISC |
| Minimum Operating Temperature | -40 °C |
| Timer Resolution | 8 bit, 16 bit |
| Timers | 1 x 16 bit, 1 x 8 bit |
| Dimensions | 1.06 x 0.28 x 0.195in |
| Program Memory Type | Flash |
| Height | 4.95mm |
