![Microchip PIC16F648A-I/SO 6230342](http://nguyenxuong.com/cdn/shop/products/W6230342-01_444x265.jpg?v=1594321639)

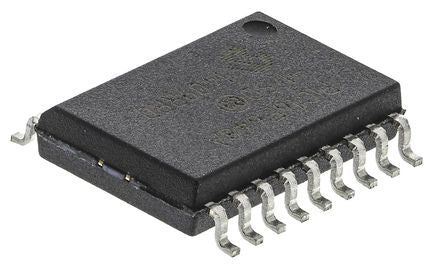

Microchip PIC16F648A-I/SO, 8bit PIC Microcontroller, 20MHz, 256 B, 4096 x 14 words Flash, 18-Pin SOIC [PIC16F648A-I/SO]; 623-0342
by Microchip
0₫
Mã kho: 6230342
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | PIC16F |
Package Type | SOIC |
Mounting Type | Surface Mount |
Pin Count | 18 |
Device Core | PIC |
Data Bus Width | 8bit |
Program Memory Size | 256 B, 4096 x 14 words |
Maximum Frequency | 20MHz |
RAM Size | 224 B |
Number of PWM Units | 1 |
Typical Operating Supply Voltage | 3 → 5.5 V |
Instruction Set Architecture | RISC |
Maximum Operating Temperature | +85 °C |
Length | 11.55mm |
Width | 7.5mm |
Minimum Operating Temperature | -40 °C |
PWM Resolution | 10bit |
Timer Resolution | 8 bit, 16 bit |
Height | 2.35mm |
Number of USART Channels | 1 |
Timers | 1 x 16 bit, 2 x 8 bit |
Pulse Width Modulation | 1(10 bit) (CCP) |
Dimensions | 11.55 x 7.5 x 2.35mm |
Program Memory Type | Flash |
Number of Timers | 3 |
