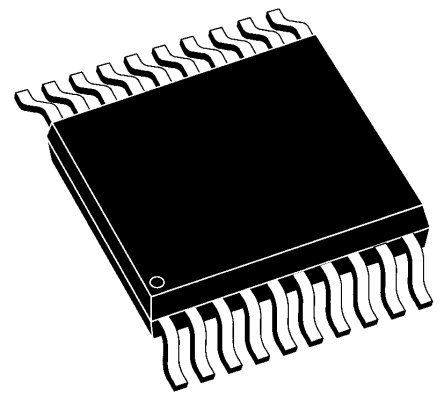

Microchip PIC16F631-I/SS, 8bit PIC Microcontroller, 20MHz, 1024 words Flash, 20-Pin SSOP [PIC16F631-I/SS]; 400-346
by Microchip
0₫
Mã kho: 400346
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC16F |
| Package Type | SSOP |
| Mounting Type | Surface Mount |
| Pin Count | 20 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 1024 words |
| Maximum Frequency | 20MHz |
| RAM Size | 64 B |
| Number of PWM Units | 1 |
| Typical Operating Supply Voltage | 2 → 5.5 V |
| Timer Resolution | 8 bit, 16 bit |
| Minimum Operating Temperature | -40 °C |
| Program Memory Type | Flash |
| Dimensions | 7.5 x 5.6 x 1.85mm |
| Timers | 1 x 16 bit, 1 x 8 bit |
| Height | 1.85mm |
| Instruction Set Architecture | RISC |
| Pulse Width Modulation | 1(ECCP) |
| Width | 5.6mm |
| Length | 7.5mm |
| Maximum Operating Temperature | +85 °C |
| Number of Timers | 2 |
