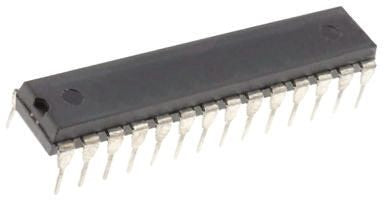

Microchip PIC16F57-I/SP, 8bit PIC Microcontroller, 20MHz, 2048 x 12 words Flash, 28-Pin SPDIP [PIC16F57-I/SP]; 623-0241
by Microchip
0₫
Mã kho: 6230241
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC16F |
| Package Type | SPDIP |
| Mounting Type | Through Hole |
| Pin Count | 28 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 2048 x 12 words |
| Maximum Frequency | 20MHz |
| RAM Size | 72 B |
| Typical Operating Supply Voltage | 2 to 5.5 V |
| Length | 35.56mm |
| Program Memory Type | Flash |
| Maximum Operating Temperature | +85 °C |
| Width | 0.295in |
| Number of Timers | 1 |
| Instruction Set Architecture | RISC |
| Minimum Operating Temperature | -40 °C |
| Timers | 1 x 8 bit |
| Timer Resolution | 8bit |
| Dimensions | 1.4 x 0.295 x 0.15in |
| Height | 3.81mm |
