![Microchip PIC16F57-I/SP 1445763](http://nguyenxuong.com/cdn/shop/products/R4670962-06_661e810e-9a7d-425e-ad83-76746f0d2e18_384x201.jpg?v=1594233456)

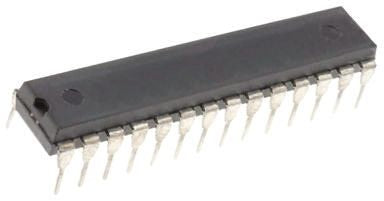

Microchip PIC16F57-I/SP, 8bit PIC Microcontroller, 20MHz, 2048 x 12 words Flash, 28-Pin SPDIP [PIC16F57-I/SP]; 144-5763
by Microchip
0₫
Mã kho: 1445763
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | PIC16F |
Package Type | SPDIP |
Mounting Type | Through Hole |
Pin Count | 28 |
Device Core | PIC |
Data Bus Width | 8bit |
Program Memory Size | 2048 x 12 words |
Maximum Frequency | 20MHz |
RAM Size | 72 B |
Typical Operating Supply Voltage | 2 → 5.5 V |
Length | 35.56mm |
Number of Timers | 1 |
Instruction Set Architecture | RISC |
Program Memory Type | Flash |
Maximum Operating Temperature | +85 °C |
Width | 7.49mm |
Height | 3.81mm |
Timer Resolution | 8bit |
Timers | 1 x 8 bit |
Minimum Operating Temperature | -40 °C |
Dimensions | 35.56 x 7.49 x 3.81mm |
