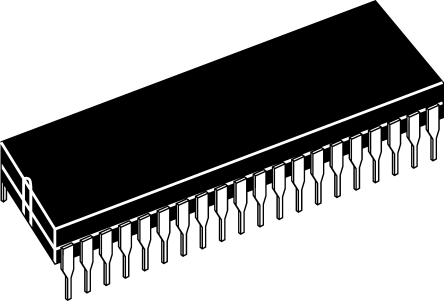

Microchip PIC16F1934-I/P, 8bit PIC Microcontroller, 32MHz, 256 B, 4096 x 14 words Flash, 40-Pin PDIP [PIC16F1934-I/P]; 144-5779
by Microchip
0₫
Mã kho: 1445779
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC16F |
| Package Type | PDIP |
| Mounting Type | Through Hole |
| Pin Count | 40 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 256 B, 4096 x 14 words |
| Maximum Frequency | 32MHz |
| RAM Size | 256 B |
| Number of PWM Units | 5 |
| ADC Channels | 14 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 1.8 → 5.5 V |
| Number of I2C Channels | 1 |
| Number of Timers | 5 |
| Maximum Operating Temperature | +85 °C |
| Number of ADC Units | 1 |
| Instruction Set Architecture | RISC |
| Length | 53.21mm |
| ADCs | 14 x 10 bit |
| Timer Resolution | 8 bit, 16 bit |
| Height | 4.95mm |
| ADC Resolution | 10bit |
| Minimum Operating Temperature | -40 °C |
| Program Memory Type | Flash |
| Pulse Width Modulation | 2(10 bit) (CCP), 3(10 bit) (ECCP) |
| Dimensions | 53.21 x 14.73 x 4.95mm |
| Timers | 1 x 16 bit, 4 x 8 bit |
| Number of USART Channels | 1 |
| PWM Resolution | 10bit |
| Width | 14.73mm |
