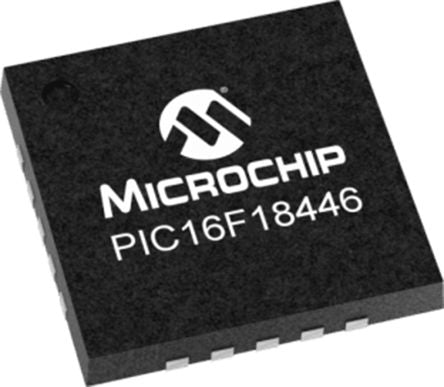

Microchip Technology PIC16F18446-I/GZ Microcontroller [PIC16F18446-I/GZ]; 171-7776
by Microchip
0₫
Mã kho: 1717776
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC16F |
| Package Type | UQFN |
| Mounting Type | Surface Mount |
| Pin Count | 20 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 28 kB |
| Maximum Frequency | 32MHz |
| RAM Size | 2 kB |
| Number of PWM Units | 2 |
| ADC Channels | 17 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 5.5 V |
| Number of I2C Channels | 2 |
| Number of Timers | 2 |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Length | 4mm |
| ADCs | 1 (17 x 12 bit) |
| Timer Resolution | 8 bit, 16 bit |
| Height | 0.5mm |
| Number of LIN Channels | 1 |
| PWM Channels | 2 |
| Width | 4mm |
| ADC Resolution | 12bit |
| Minimum Operating Temperature | -40 °C |
| PWM Resolution | 10bit |
| Instruction Set Architecture | RISC |
| Timers | 1 (4 x 16 bit), 1 (4 x 8 bit) |
| Dimensions | 4 x 4 x 0.5mm |
| Pulse Width Modulation | 2 (2 x 10 bit) |
| Program Memory Type | Flash |
| Number of USART Channels | 1 |
