![Microchip PIC16F18324-E/SL 1772086](http://nguyenxuong.com/cdn/shop/products/Y1772086-03_444x380.jpg?v=1594117645)

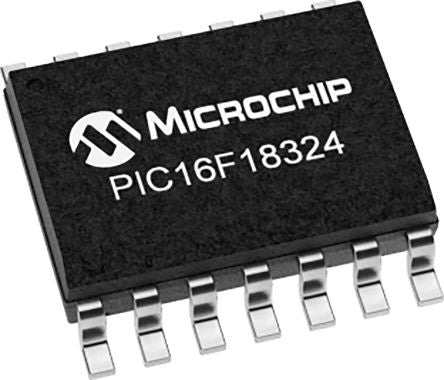

Microchip Technology PIC16F18324-E/SL, 8bit 8 bit CPU Microcontroller, 32MHz, 7 kB Flash, 14-Pin SOIC [PIC16F18324-E/SL]; 177-2086
by Microchip
0₫
Mã kho: 1772086
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | PIC16F |
Package Type | SOIC |
Mounting Type | Surface Mount |
Pin Count | 14 |
Device Core | 8 bit CPU |
Data Bus Width | 8bit |
Program Memory Size | 7 kB |
Maximum Frequency | 32MHz |
RAM Size | 512 B |
Number of PWM Units | 1 |
ADC Channels | 11 |
Number of SPI Channels | 1 |
Typical Operating Supply Voltage | 5.5 (Maximum) V |
Number of I2C Channels | 1 |
Number of Timers | 2 |
ADCs | 1 (11 x 10 bit) |
Length | 8.65mm |
Number of UART Channels | 1 |
Maximum Operating Temperature | +125 °C |
Number of USART Channels | 1 |
Number of ADC Units | 1 |
Pulse Width Modulation | 1 (2 x 10 bit) |
PWM Resolution | 10bit |
Timer Resolution | 8 bit, 16 bit |
Program Memory Type | Flash |
PWM Channels | 2 |
Width | 3.9mm |
ADC Resolution | 10bit |
Dimensions | 8.65 x 3.9 x 1.5mm |
Minimum Operating Temperature | -40 °C |
Height | 1.5mm |
