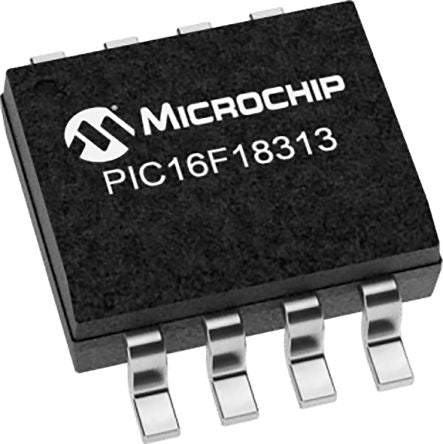

Microchip Technology PIC16F18313-E/SN, 8bit 8 bit CPU Microcontroller, 32MHz, 3.5 kB Flash, 8-Pin SOIC [PIC16F18313-E/SN]; 177-2440
by Microchip
0₫
Mã kho: 1772440
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC16F |
| Package Type | SOIC |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Device Core | 8 bit CPU |
| Data Bus Width | 8bit |
| Program Memory Size | 3.5 kB |
| Maximum Frequency | 32MHz |
| RAM Size | 256 B |
| Number of PWM Units | 1 |
| ADC Channels | 5 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 5.5 (Maximum) V |
| Maximum Operating Temperature | +125 °C |
| Program Memory Type | Flash |
| Number of ADC Units | 1 |
| Number of I2C Channels | 1 |
| Number of Timers | 2 |
| Pulse Width Modulation | 1 (2 x 10 bit) |
| PWM Resolution | 10bit |
| Dimensions | 4.9 x 3.9 x 1.5mm |
| Minimum Operating Temperature | -40 °C |
| Number of UART Channels | 1 |
| ADCs | 1 (5 x 10 bit) |
| Length | 4.9mm |
| Height | 1.5mm |
| Number of USART Channels | 1 |
| ADC Resolution | 10bit |
| Width | 3.9mm |
| Timer Resolution | 8 bit, 16 bit |
| Timers | 1 (1 x 16 bit), 1 (2 x 8 bit) |
| PWM Channels | 2 |
