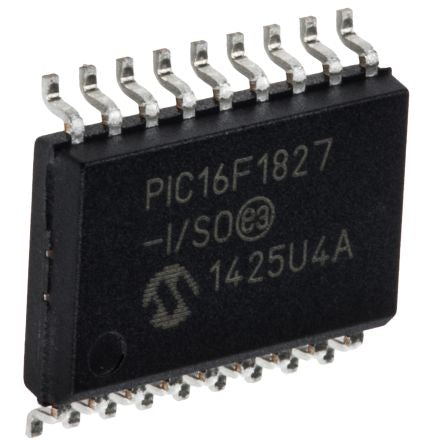

Microchip PIC16F1827-I/SO, 8bit PIC Microcontroller, 32MHz, 256 B, 4K x 14 words Flash, 18-Pin SOIC [PIC16F1827-I/SO]; 698-8953
by Microchip
0₫
Mã kho: 6988953
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC16F |
| Package Type | SOIC |
| Mounting Type | Surface Mount |
| Pin Count | 18 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 4K x 14 words, 256 B |
| Maximum Frequency | 32MHz |
| RAM Size | 384 B |
| Number of PWM Units | 4 |
| ADC Channels | 12 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 1.8 → 5.5 V |
| ADCs | 12 x 10 bit |
| Width | 7.5mm |
| Pulse Width Modulation | 1(ECCP Full Bridge), 1(ECCP Half Bridge), 2(CCP) |
| Maximum Operating Temperature | +85 °C |
| Instruction Set Architecture | RISC |
| ADC Resolution | 10bit |
| Number of I2C Channels | 2 |
| Number of Timers | 5 |
| Length | 11.55mm |
| Number of ADC Units | 1 |
| Program Memory Type | Flash |
| Dimensions | 11.55 x 7.5 x 2.35mm |
| Timers | 1 x 16 bit, 4 x 8 bit |
| Number of USART Channels | 1 |
| Height | 2.35mm |
| Timer Resolution | 8 bit, 16 bit |
| Minimum Operating Temperature | -40 °C |
