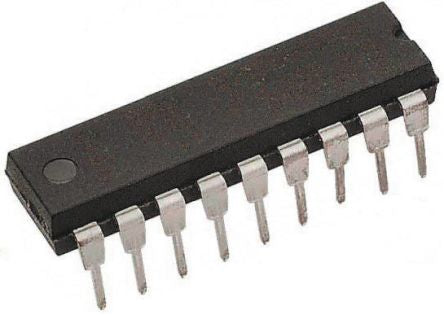

Microchip PIC16F1827-E/P, 8bit PIC Microcontroller, 32MHz, 7 kB Flash, 18-Pin PDIP [PIC16F1827-E/P]; 145-8994
by Microchip
0₫
Mã kho: 1458994
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC16F |
| Package Type | PDIP |
| Mounting Type | Through Hole |
| Pin Count | 18 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 7 kB |
| Maximum Frequency | 32MHz |
| RAM Size | 384 B |
| Number of PWM Units | 4 |
| ADC Channels | 12 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 1.8 → 5.5 V |
| Number of Timers | 5 |
| Program Memory Type | Flash |
| Pulse Width Modulation | 4 (1 ECCP Full Bridge), 4 (1 ECCP Half Bridge), 4 (2 CCP) |
| Dimensions | 0.92 x 0.28 x 0.2in |
| Timers | 1 x 16 bit, 4 x 8 bit |
| Number of USART Channels | 1 |
| Width | 0.28in |
| PWM Channels | 4 |
| Number of I2C Channels | 2 |
| Instruction Set Architecture | RISC |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 10bit |
| Height | 5.08mm |
| Timer Resolution | 8bit |
| ADCs | 12 x 10 bit |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +125 °C |
| Length | 23.37mm |
