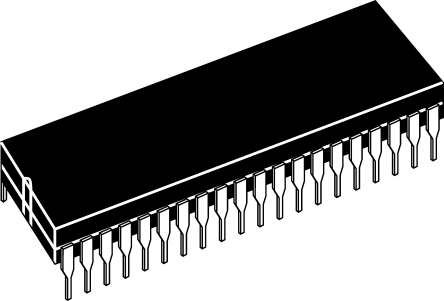

Microchip PIC16F1784-I/P, 8bit PIC Microcontroller, 32MHz, 4096 words Flash, 40-Pin PDIP [PIC16F1784-I/P]; 144-5833
by Microchip
0₫
Mã kho: 1445833
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | PIC16F |
Package Type | PDIP |
Mounting Type | Through Hole |
Pin Count | 40 |
Device Core | PIC |
Data Bus Width | 8bit |
Program Memory Size | 4096 words |
Maximum Frequency | 32MHz |
RAM Size | 512 B |
USB Channels | 1 |
Number of PWM Units | 1 |
ADC Channels | 14 |
Number of SPI Channels | 1 |
Typical Operating Supply Voltage | 2.3 → 5.5 V |
Number of I2C Channels | 1 |
Program Memory Type | Flash |
Number of Timers | 2 |
Dimensions | 53.21 x 14.73 x 4.95mm |
Pulse Width Modulation | 1(10 bit) |
ADC Resolution | 12bit |
Timer Resolution | 8 bit, 16 bit |
Height | 4.95mm |
Number of LIN Channels | 1 |
Width | 14.73mm |
Number of USART Channels | 1 |
Timers | 1(1 x 16 bit), 1(2 x 8 bit) |
Minimum Operating Temperature | -40 °C |
PWM Resolution | 10bit |
Instruction Set Architecture | RISC |
Number of ADC Units | 1 |
Maximum Operating Temperature | +85 °C |
Length | 53.21mm |
ADCs | 1(14 x 12 bit) |
