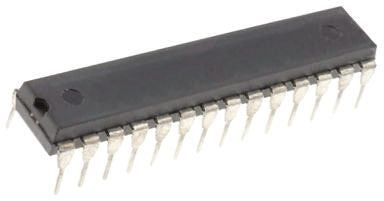

Microchip PIC16F1782-I/SP, 8bit PIC Microcontroller, 32MHz, 256 B, 2048 words Flash, 28-Pin SPDIP [PIC16F1782-I/SP]; 761-7605
by Microchip
0₫
Mã kho: 7617605
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC16F |
| Package Type | SPDIP |
| Mounting Type | Through Hole |
| Pin Count | 28 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 256 B, 2048 words |
| Maximum Frequency | 32MHz |
| RAM Size | 256 B |
| Number of PWM Units | 2 |
| ADC Channels | 11 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 2.3 to 5.5 V |
| Instruction Set Architecture | RISC |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Length | 35.56mm |
| ADCs | 11 x 12 bit |
| ADC Resolution | 12bit |
| Number of I2C Channels | 1 |
| Number of Timers | 3 |
| Dimensions | 1.4 x 0.295 x 0.15in |
| PWM Resolution | 16bit |
| Minimum Operating Temperature | -40 °C |
| Program Memory Type | Flash |
| Timers | 1 x 16 bit, 2 x 8 bit |
| Number of USART Channels | 1 |
| Timer Resolution | 8 bit, 16 bit |
| Height | 3.81mm |
| Pulse Width Modulation | 2(16 bit) (CCP) |
| Width | 0.295in |
