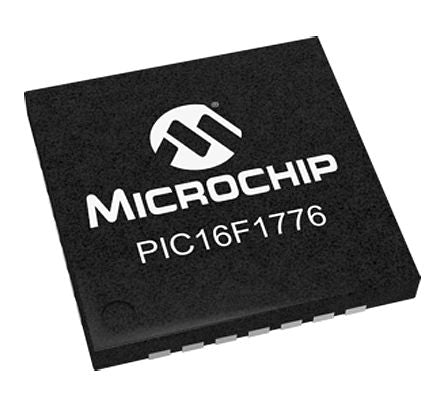

Microchip PIC16F1776-I/MX, 8bit PIC Microcontroller, 32MHz, 14 kB Flash, 28-Pin UQFN [PIC16F1776-I/MX]; 165-4105
by Microchip
0₫
Mã kho: 1654105
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC16F |
| Package Type | UQFN |
| Mounting Type | Surface Mount |
| Pin Count | 28 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 14 kB |
| Maximum Frequency | 32MHz |
| RAM Size | 1 kB |
| Number of PWM Units | 6 |
| ADC Channels | 17 |
| Typical Operating Supply Voltage | 2.3 → 5.5 V |
| Number of Timers | 3, 5 |
| Width | 6mm |
| Program Memory Type | Flash |
| Number of ADC Units | 1 |
| Instruction Set Architecture | RISC |
| Pulse Width Modulation | 3 x 10 bit, 3 x 16 bit |
| PWM Resolution | 10 bit, 16 bit |
| ADCs | 1 (17 x 10 bit) |
| Length | 6mm |
| Maximum Operating Temperature | +85 °C |
| Height | 0.6mm |
| Timer Resolution | 8 bit, 16 bit |
| Dimensions | 6 x 6 x 0.6mm |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 10bit |
| Timers | 12 x 16 bit, 14 x 8 bit |
