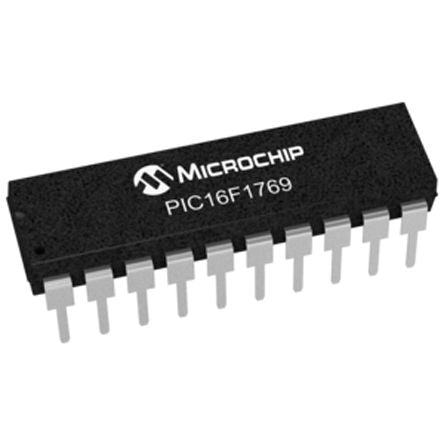

Microchip PIC16F1769-I/P, 8bit PIC Microcontroller, 32MHz, 14 kB Flash, 20-Pin PDIP [PIC16F1769-I/P]; 146-0334
by Microchip
0₫
Mã kho: 1460334
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC16F |
| Package Type | PDIP |
| Mounting Type | Through Hole |
| Pin Count | 20 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 14 kB |
| Maximum Frequency | 32MHz |
| RAM Size | 1.024 kB |
| Number of PWM Units | 1 |
| ADC Channels | 12 |
| Typical Operating Supply Voltage | 2.3 → 5.5 V |
| Length | 26.92mm |
| Maximum Operating Temperature | +85 °C |
| Program Memory Type | Flash |
| Width | 0.28in |
| Number of ADC Units | 1 |
| Instruction Set Architecture | RISC |
| PWM Channels | 2 |
| Pulse Width Modulation | 1 (2 x 10 bit /2 x 16 bit) |
| PWM Resolution | 10 bit, 16 bit |
| Height | 5.33mm |
| Timer Resolution | 16bit |
| Dimensions | 1.06 x 0.28 x 0.21in |
| Minimum Operating Temperature | -40 °C |
| Timers | 3 x 16 bit |
| ADC Resolution | 10bit |
| ADCs | 1 (12 x 10 bit) |
| Number of Timers | 3 |
