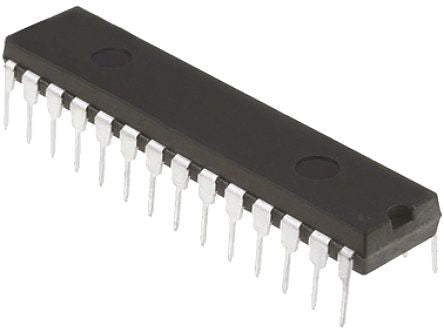

Microchip PIC16F1716-I/SP, 8bit PIC Microcontroller, 32MHz, 8192 words Flash, 28-Pin SPDIP [PIC16F1716-I/SP]; 144-5869
by Microchip
0₫
Mã kho: 1445869
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | PIC16F |
Package Type | SPDIP |
Mounting Type | Through Hole |
Pin Count | 28 |
Device Core | PIC |
Data Bus Width | 8bit |
Program Memory Size | 8192 words |
Maximum Frequency | 32MHz |
RAM Size | 1.024 kB |
Number of PWM Units | 2 |
ADC Channels | 25 |
Number of SPI Channels | 1 |
Typical Operating Supply Voltage | 2.3 → 5.5 V |
Instruction Set Architecture | RISC |
PWM Resolution | 8 bit, 10 bit |
Minimum Operating Temperature | -40 °C |
Number of I2C Channels | 1 |
Dimensions | 35.56 x 7.49 x 3.81mm |
Number of Timers | 2 |
ADC Resolution | 10bit |
Number of ADC Units | 1 |
Maximum Operating Temperature | +85 °C |
Number of UART Channels | 1 |
Length | 35.56mm |
ADCs | 1 (25 x 10 bit) |
Program Memory Type | Flash |
Timer Resolution | 8 bit, 16 bit |
Height | 3.81mm |
Number of LIN Channels | 1 |
PWM Channels | 2 |
Width | 7.49mm |
Pulse Width Modulation | 1 (2 x 8 bit), 1(2 x 10 bit) |
Number of USART Channels | 1 |
Timers | 1 x 16 bit, 4 x 8 bit |
