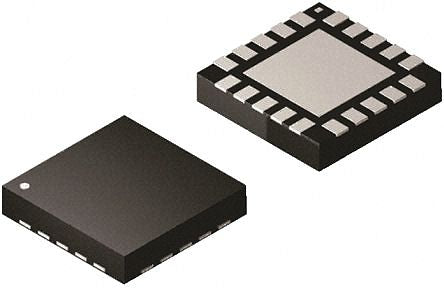

Microchip PIC16F1708-I/ML, 8bit PIC Microcontroller, 32MHz, 4096 words Flash, 20-Pin QFN [PIC16F1708-I/ML]; 145-9384
by Microchip
0₫
Mã kho: 1459384
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC16F |
| Package Type | QFN |
| Mounting Type | Surface Mount |
| Pin Count | 20 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 4096 words |
| Maximum Frequency | 32MHz |
| RAM Size | 512 B |
| Number of PWM Units | 2 |
| ADC Channels | 12 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 1.8 → 5.5 V |
| Program Memory Type | Flash |
| Pulse Width Modulation | 2 CCP |
| Dimensions | 4 x 4 x 0.95mm |
| Timers | 1 x 16 bit, 4 x 8 bit |
| Width | 3mm |
| Height | 0.95mm |
| Timer Resolution | 8 bit, 16 bit |
| ADCs | 1 (12 x 10 bit) |
| Length | 3mm |
| Maximum Operating Temperature | +85 °C |
| Number of ADC Units | 1 |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 10bit |
| Number of UART Channels | 1 |
| Number of I2C Channels | 1 |
| Number of Timers | 1, 4 |
| Instruction Set Architecture | RISC |
