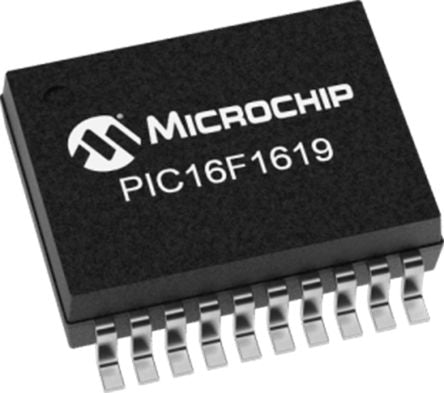

Microchip PIC16F1619-E/SS, 8bit 8 bit CPU Microcontroller, 32MHz, 14 kB Flash, 20-Pin SSOP [PIC16F1619-E/SS]; 175-3156
by Microchip
0₫
Mã kho: 1753156
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC16F |
| Package Type | SSOP |
| Mounting Type | Surface Mount |
| Pin Count | 20 |
| Device Core | 8 bit CPU |
| Data Bus Width | 8bit |
| Program Memory Size | 14 kB |
| Maximum Frequency | 32MHz |
| RAM Size | 1024 B |
| Number of PWM Units | 1 |
| ADC Channels | 12 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 1.8 → 5.5 V |
| Number of Timers | 2 |
| Number of UART Channels | 1 |
| Program Memory Type | Flash |
| Pulse Width Modulation | 1 (2 x 10 bit) |
| Timers | 1 (4 x 16 bit), 1 (4 x 8 bit) |
| Dimensions | 7.5 x 5.6 x 1.85mm |
| Number of I2C Channels | 1 |
| Number of USART Channels | 1 |
| ADC Resolution | 10bit |
| Minimum Operating Temperature | -40 °C |
| PWM Resolution | 10bit |
| Instruction Set Architecture | RISC |
| Width | 5.6mm |
| ADCs | 1 (12 x 10 bit) |
| Length | 7.5mm |
| Number of ADC Units | 1 |
| PWM Channels | 2 |
| Maximum Operating Temperature | +125 °C |
| Number of LIN Channels | 1 |
| Height | 1.85mm |
| Timer Resolution | 8 bit, 16 bit |
