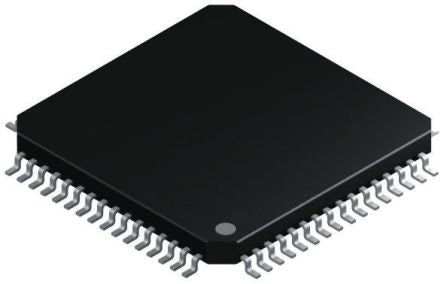

Microchip PIC16F1526-I/PT, 8bit PIC Microcontroller, 20MHz, 14 kB Flash, 64-Pin TQFP [PIC16F1526-I/PT]; 741-4239
by Microchip
0₫
Mã kho: 7414239
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC16F |
| Package Type | TQFP |
| Mounting Type | Surface Mount |
| Pin Count | 64 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 14 kB |
| Maximum Frequency | 20MHz |
| RAM Size | 768 B |
| Number of PWM Units | 1 |
| ADC Channels | 30 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 2.3 → 5.5 V |
| ADC Resolution | 10bit |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Length | 10mm |
| Number of Timers | 6 |
| Number of I2C Channels | 2 |
| Instruction Set Architecture | RISC |
| Timer Resolution | 8bit |
| Height | 1.05mm |
| Number of USART Channels | 2 |
| Timers | 6 x 8 bit |
| Dimensions | 10 x 10 x 1.05mm |
| PWM Resolution | 10bit |
| Minimum Operating Temperature | -40 °C |
| Program Memory Type | Flash |
| PWM Channels | 10 |
| Width | 10mm |
| ADCs | 30 x 10 bit |
| Pulse Width Modulation | 10 x 10 bit |
