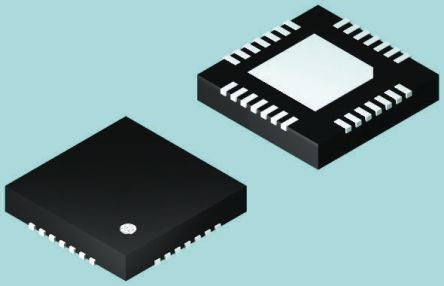

![Microchip PIC16F1518-I/MV 1597410](http://nguyenxuong.com/cdn/shop/products/R5457473-06_b2d8f99d-5b0f-47ce-8997-d16a88ab6b06_444x286.jpg?v=1594364822)
Microchip PIC16F1518-I/MV, 8bit PIC Microcontroller, 20MHz, 28 kB Flash, 28-Pin UQFN [PIC16F1518-I/MV]; 159-7410
by Microchip
0₫
Mã kho: 1597410
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | PIC16F |
Package Type | UQFN |
Mounting Type | Surface Mount |
Pin Count | 28 |
Device Core | PIC |
Data Bus Width | 8bit |
Program Memory Size | 28 kB |
Maximum Frequency | 20MHz |
RAM Size | 1.024 kB |
Number of PWM Units | 1 |
ADC Channels | 17 |
Number of SPI Channels | 1 |
Typical Operating Supply Voltage | 2.3 → 5.5 V |
Timers | 2 x 8 bit |
Dimensions | 4 x 4 x 0.5mm |
Pulse Width Modulation | 1(2 Channel) |
Program Memory Type | Flash |
Number of Timers | 2 |
Number of USART Channels | 1 |
ADC Resolution | 10bit |
PWM Channels | 2 |
Height | 0.5mm |
Timer Resolution | 8bit |
ADCs | 17 x 10 bit |
Length | 4mm |
Maximum Operating Temperature | +85 °C |
Number of ADC Units | 1 |
Instruction Set Architecture | RISC |
Minimum Operating Temperature | -40 °C |
Width | 4mm |
Number of I2C Channels | 1 |
