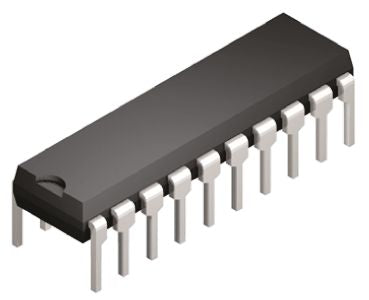

![Microchip PIC16F1509-I/P 8103949](http://nguyenxuong.com/cdn/shop/products/DIP-20_7dc66e48-6a87-46f2-bdbf-294aac680734_369x300.jpg?v=1594330087)
Microchip PIC16F1509-I/P, 8bit PIC Microcontroller, 20MHz, 8192 words Flash, 20-Pin PDIP [PIC16F1509-I/P]; 810-3949
by Microchip
0₫
Mã kho: 8103949
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | PIC16F |
Package Type | PDIP |
Mounting Type | Through Hole |
Pin Count | 20 |
Device Core | PIC |
Data Bus Width | 8bit |
Program Memory Size | 8192 words |
Maximum Frequency | 20MHz |
RAM Size | 512 B |
USB Channels | 1 |
Number of PWM Units | 1 |
ADC Channels | 12 |
Number of SPI Channels | 1 |
Typical Operating Supply Voltage | 2.3 to 5.5 V |
Pulse Width Modulation | 4 x 10 bit |
Program Memory Type | Flash |
Timers | 1 x 16 bit, 2 x 8 bit |
Dimensions | 1.06 x 0.28 x 0.195in |
Number of USART Channels | 1 |
Number of LIN Channels | 1 |
PWM Channels | 4 |
Width | 0.28in |
Length | 26.92mm |
Height | 4.95mm |
ADCs | 12 x 10 bit |
Timer Resolution | 8 bit, 16 bit |
Number of I2C Channels | 1 |
Number of UART Channels | 1 |
Number of Timers | 3 |
Minimum Operating Temperature | -40 °C |
PWM Resolution | 10bit |
Instruction Set Architecture | RISC |
ADC Resolution | 10bit |
Maximum Operating Temperature | +85 °C |
Number of ADC Units | 1 |
