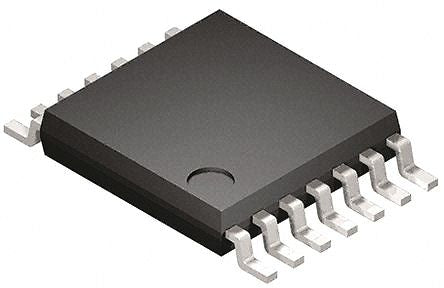

Microchip PIC16F1503-E/ST, 8bit PIC Microcontroller, 20MHz, 3.5 kB Flash, 14-Pin TSSOP [PIC16F1503-E/ST]; 823-4472
by Microchip
0₫
Mã kho: 8234472
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | PIC16F |
| Package Type | TSSOP |
| Mounting Type | Surface Mount |
| Pin Count | 14 |
| Device Core | PIC |
| Data Bus Width | 8bit |
| Program Memory Size | 3.5 kB |
| Maximum Frequency | 20MHz |
| RAM Size | 128 B |
| USB Channels | 1 |
| Number of PWM Units | 4 |
| ADC Channels | 8 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 2.3 → 5.5 V |
| Width | 4.5mm |
| Number of I2C Channels | 1 |
| Number of Timers | 3 |
| Program Memory Type | Flash |
| Pulse Width Modulation | 4 x 10 bit |
| Dimensions | 5.1 x 4.5 x 1.05mm |
| Timers | 1 x 16 bit, 2 x 8 bit |
| Instruction Set Architecture | RISC |
| Number of ADC Units | 1 |
| PWM Resolution | 10bit |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 10bit |
| Height | 1.05mm |
| Timer Resolution | 8 bit, 16 bit |
| ADCs | 1 (8 x 10 bit) |
| Length | 5.1mm |
| Maximum Operating Temperature | +125 °C |
